Which SIMAGIC Alpha EVO wheelbase should you build around? The answer starts with your cockpit, steering wheel and preferred force-feedback range. This guide covers the complete four-base family—Sport 9 Nm, EVO 12 Nm, Pro 18 Nm and Ultra 28 Nm—with a practical focus on torque headroom, mounting and first setup. For help choosing a Zeus steering wheel, see our separate Simagic Zeus wheel guide.
SIMAGIC Alpha EVO 9, 12, 18 and 28 Nm: what changes?
| Model | Maximum rated torque | Best starting point |
|---|---|---|
| Alpha EVO Sport | 9 Nm | Drivers moving into direct drive who want a compact, responsive rig |
| Alpha EVO | 12 Nm | A balanced GT and formula setup with more room to tune peak forces |
| Alpha EVO Pro | 18 Nm | Drivers wanting stronger sustained steering loads and extra headroom |
| Alpha EVO Ultra | 28 Nm | A rigid, high-end rig where maximum force-feedback headroom matters |
Torque is a ceiling, not a recommended setting for every lap. A more powerful base can be run below its maximum while retaining room for heavier steering events. The right choice depends on wheel diameter, game, cockpit rigidity and personal preference. Begin with conservative settings and increase force feedback gradually; use the game's clipping meter or telemetry where available.
The shared Alpha EVO platform
The Sport, standard EVO and Pro use SIMAGIC's low-inertia motor architecture, 21-bit encoder, active cooling and SimPro Manager tuning environment. SIMAGIC documents its Zero-Cogging and Dynamic Force Domain Filter technology for the family. The Ultra extends the lineup to 28 Nm, with its own compact rotor design and 21-bit encoder. All four belong to the same Alpha EVO ecosystem, but check the exact base's dimensions and mounting before reusing an old bracket.
9 Nm or 12 Nm?
The 9 Nm Sport is a sensible route when your goal is a responsive direct-drive setup without aiming for very heavy steering. The 12 Nm EVO adds torque headroom for larger GT rims, stronger force-feedback profiles or future tuning. Neither figure is a measure of lap-time improvement: good pedal positioning and a stable cockpit matter just as much.

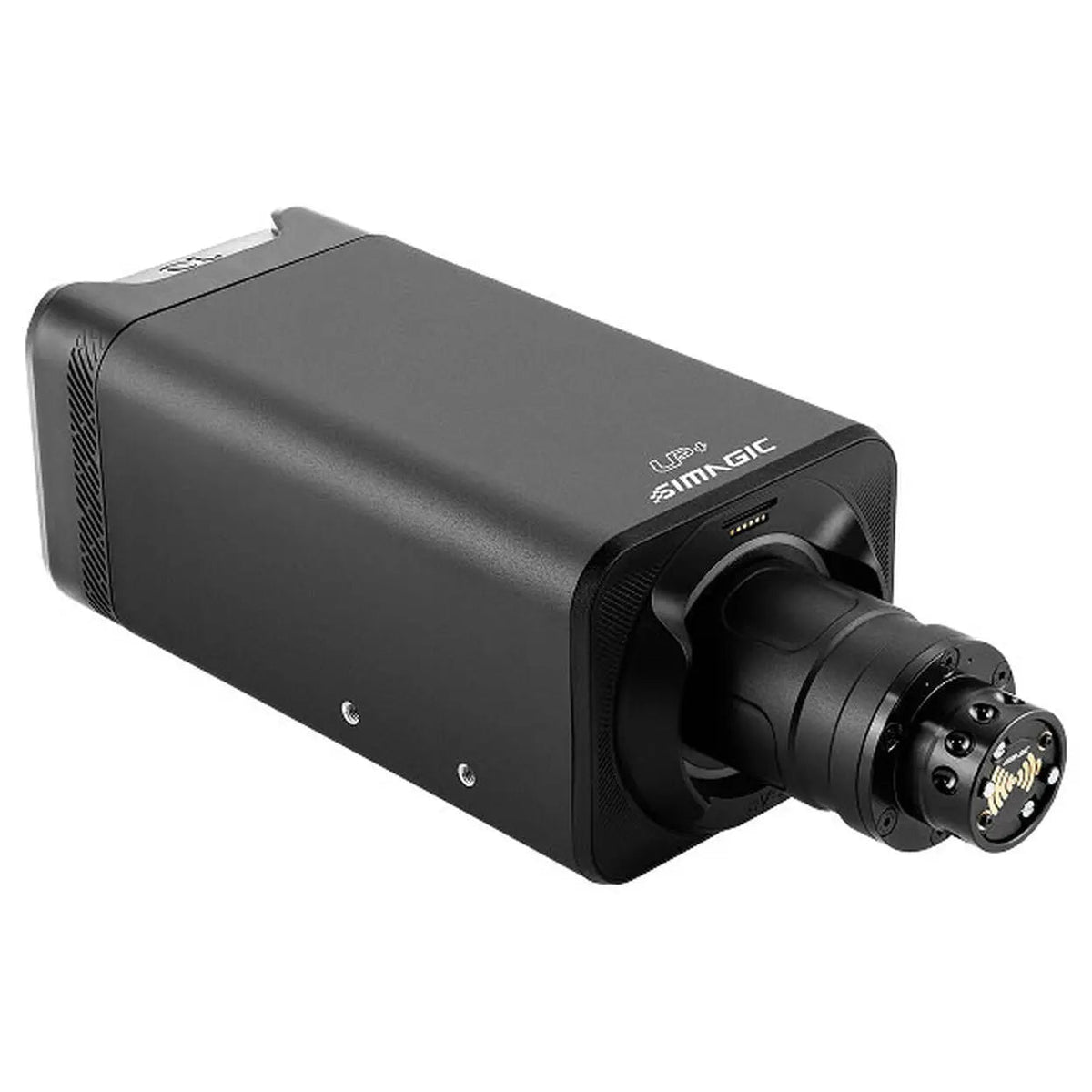

18 Nm or 28 Nm?
The 18 Nm Pro is a meaningful step for drivers who want more range than 12 Nm while retaining the familiar Alpha EVO setup approach. The 28 Nm Ultra is the flagship for a demanding cockpit and users seeking the largest torque margin in this family. It is heavier than the smaller models, so confirm mounting strength, pedal-deck stability and monitor clearance as part of the complete rig plan.
Mounting and quick release checklist
- Measure the cockpit. Match your wheel deck or front/side mount to the exact Alpha EVO model. Do not assume old Alpha mounting holes or clearances are identical.
- Choose the bracket. The Alpha EVO side-mount brackets are a catalog option for the EVO family; confirm the full bracket kit and cockpit interface for your rig.
- Plan the wheel-side connection. SIMAGIC wheels such as the GT Neo V2 are a straightforward ecosystem pairing. For a supported third-party USB wheel, inspect the SIMAGIC QR-A adapter requirements, bolt pattern and wheel-specific cabling.
- Route power and USB cleanly. Allow cable movement and leave ventilation openings clear. Follow the included manual rather than improvising fasteners or power supplies.
- Tune in stages. Install the current SIMAGIC software, update firmware where appropriate, set steering rotation and create a moderate starting profile before increasing strength.
Which Alpha EVO would we choose?
Choose the Sport 9 Nm for an accessible direct-drive build; the 12 Nm EVO for a versatile middle ground; the Pro 18 Nm for a stronger advanced setup; and the Ultra 28 Nm when your cockpit, wheel and driving preferences justify maximum headroom. Pair the base with a compatible wheel and mount first, then set force feedback to suit your car and session length.
Frequently asked questions
Does higher torque always mean better detail?
No. More torque provides headroom, while motor behavior, software settings, wheel mass and game telemetry also shape what you feel.
Can I mount a third-party USB wheel?
Selected wheels can use the QR-A adapter when the connection and mounting pattern are compatible. Verify the specific wheel and any required driver or cable.
Can I use the same side bracket on every Alpha EVO?
The MB-S bracket listing covers the EVO family, but confirm the exact base, cockpit and hardware before installation.
Should a first-time user run the base at maximum torque?
No. Begin with a moderate profile and adjust gradually after checking cockpit rigidity and in-game clipping.
Manufacturer references: SIMAGIC Alpha EVO family and Alpha EVO Ultra specifications.
